1C104

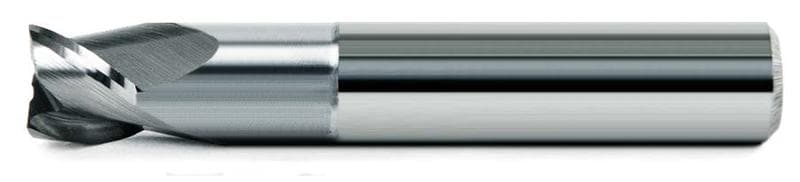

Цельная твердосплавная концевая фреза, 3 зуба, со средней и удлиненной режущей частью. Универсальная геометрия.
Основное применение
- n1 Сплавы на основе алюминия
Возможное применение
- n3 Сплавы на основе меди
Покрытие
PurePolish (полировка)
Тип хвостовика
цилиндрический
Форма торца
торец без фаски, наостро; торец с фаской chх45˚
Зубья
- 3 зуба, постоянный шаг, с перекрытием центра
Угол подъема спиральной канавки
37.5°
Единицы измерения — мм
| Обозначение | D1 | D2 | D3 | Fх45° | L1 | L2 | ap | Z | Форма |
|---|---|---|---|---|---|---|---|---|---|
| 1C104D020 | 2 | 4 | 0 | 0 | 50 | 0 | 6 | 3 | A |
| 1C104D020X60 | 2 | 4 | 0 | 0 | 60 | 0 | 6 | 3 | A |
| 1C104D020X60A6N15H6 | 2 | 6 | 1,9 | 0 | 60 | 15 | 6 | 3 | C |
| 1C104D030 | 3 | 4 | 0 | - / 0,1 | 50 | 0 | 9 | 3 | A |
| 1C104D030X105A9N60H6 | 3 | 6 | 2,7 | - / 0,1 | 105 | 60 | 9 | 3 | C |
| 1C104D030X60 | 3 | 4 | 0 | - / 0,1 | 60 | 0 | 9 | 3 | A |
| 1C104D030X60A9N20H6 | 3 | 6 | 2,7 | - / 0,1 | 60 | 20 | 9 | 3 | C |
| 1C104D030X60H6 | 3 | 6 | 0 | - / 0,1 | 60 | 0 | 9 | 3 | A |
| 1C104D030X80A15H6 | 3 | 6 | 0 | - / 0,1 | 80 | 0 | 15 | 3 | A |
| 1C104D030X80A15N40H6 | 3 | 6 | 2,7 | - / 0,1 | 80 | 40 | 15 | 3 | C |
| 1C104D030X80A9N40H6 | 3 | 6 | 2,7 | - / 0,1 | 80 | 40 | 9 | 3 | C |
| 1C104D040 | 4 | 6 | 0 | - / 0,1 | 60 | 0 | 12 | 3 | A |
| 1C104D040X105A12N60H6 | 4 | 6 | 3,7 | - / 0,1 | 105 | 60 | 12 | 3 | C |
| 1C104D040X60A12N25H6 | 4 | 6 | 3,7 | - / 0,1 | 60 | 25 | 12 | 3 | C |
| 1C104D040X80A12N45H6 | 4 | 6 | 3,7 | - / 0,1 | 80 | 45 | 12 | 3 | C |
| 1C104D040X80A20H6 | 4 | 6 | 0 | - / 0,1 | 80 | 0 | 20 | 3 | A |
| 1C104D040X80A20N45H6 | 4 | 6 | 3,7 | - / 0,1 | 80 | 45 | 20 | 3 | C |
| 1C104D050 | 5 | 6 | 0 | - / 0,1 | 60 | 0 | 15 | 3 | A |
| 1C104D050X105A15N60H6 | 5 | 6 | 4,7 | - / 0,1 | 105 | 60 | 15 | 3 | C |
| 1C104D050X60A15N25H6 | 5 | 6 | 4,7 | - / 0,1 | 60 | 25 | 15 | 3 | C |
| 1C104D050X80A15N45H6 | 5 | 6 | 4,7 | - / 0,1 | 80 | 45 | 15 | 3 | C |
| 1C104D050X80A25H6 | 5 | 6 | 0 | - / 0,1 | 80 | 0 | 25 | 3 | A |
| 1C104D050X80A25N45H6 | 5 | 6 | 4,7 | - / 0,1 | 80 | 45 | 25 | 3 | C |
| 1C104D060 | 6 | 6 | 0 | - / 0,15 | 60 | 0 | 18 | 3 | B |
| 1C104D060X105A18N60 | 6 | 6 | 5,7 | - / 0,15 | 105 | 60 | 18 | 3 | D |
| 1C104D060X105A40 | 6 | 6 | 0 | - / 0,15 | 105 | 0 | 40 | 3 | B |
| 1C104D060X105A40N60 | 6 | 6 | 5,7 | - / 0,15 | 105 | 60 | 40 | 3 | D |
| 1C104D060X150A30N90 | 6 | 6 | 5,7 | - / 0,15 | 150 | 90 | 30 | 3 | D |
| 1C104D060X60A18N30 | 6 | 6 | 5,7 | - / 0,15 | 60 | 30 | 18 | 3 | D |
| 1C104D060X68A21 | 6 | 6 | 0 | - / 0,15 | 68 | 0 | 21 | 3 | B |
| 1C104D060X68A21N40 | 6 | 6 | 5,7 | - / 0,15 | 68 | 40 | 21 | 3 | D |
| 1C104D060X80A18N50 | 6 | 6 | 5,7 | - / 0,15 | 80 | 50 | 18 | 3 | D |
| 1C104D060X80A30 | 6 | 6 | 0 | - / 0,15 | 80 | 0 | 30 | 3 | B |
| 1C104D060X80A30N50 | 6 | 6 | 5,7 | - / 0,15 | 80 | 50 | 30 | 3 | D |
| 1C104D070 | 7 | 7 | 0 | - / 0,15 | 63 | 0 | 20 | 3 | B |
| 1C104D070X63A20N30 | 7 | 7 | 6,4 | - / 0,15 | 63 | 30 | 20 | 3 | D |
| 1C104D070X75A24 | 7 | 7 | 0 | - / 0,15 | 75 | 0 | 24 | 3 | B |
| 1C104D070X75A24N40 | 7 | 7 | 6,4 | - / 0,15 | 75 | 40 | 24 | 3 | D |
| 1C104D080 | 8 | 8 | 0 | - / 0,2 | 63 | 0 | 20 | 3 | B |
| 1C104D080X105A20N60 | 8 | 8 | 7,4 | - / 0,2 | 105 | 60 | 20 | 3 | D |
| 1C104D080X105A40N60 | 8 | 8 | 7,4 | - / 0,2 | 105 | 60 | 40 | 3 | D |
| 1C104D080X150A40N90 | 8 | 8 | 7,4 | - / 0,2 | 150 | 90 | 40 | 3 | D |
| 1C104D080X63A20N30 | 8 | 8 | 7,4 | - / 0,2 | 63 | 30 | 20 | 3 | D |
| 1C104D080X75A24 | 8 | 8 | 0 | - / 0,2 | 75 | 0 | 24 | 3 | B |
| 1C104D080X75A24N40 | 8 | 8 | 7,4 | - / 0,2 | 75 | 40 | 24 | 3 | D |
| 1C104D090 | 9 | 9 | 0 | - / 0,2 | 72 | 0 | 25 | 3 | B |
| 1C104D090X72A25N40 | 9 | 9 | 8,4 | - / 0,2 | 72 | 40 | 25 | 3 | D |
| 1C104D090X81A32 | 9 | 9 | 0 | - / 0,2 | 81 | 0 | 32 | 3 | B |
| 1C104D090X81A32N40 | 9 | 9 | 8,4 | - / 0,2 | 81 | 40 | 32 | 3 | D |
| 1C104D100 | 10 | 10 | 0 | - / 0,2 | 72 | 0 | 25 | 3 | B |
| 1C104D100X110A25N60 | 10 | 10 | 9,4 | - / 0,2 | 110 | 60 | 25 | 3 | D |
| 1C104D100X110A40N60 | 10 | 10 | 9,4 | - / 0,2 | 110 | 60 | 40 | 3 | D |
| 1C104D100X150A40N90 | 10 | 10 | 9,4 | - / 0,2 | 150 | 90 | 40 | 3 | D |
| 1C104D100X150A65N90 | 10 | 10 | 9,4 | - / 0,2 | 150 | 90 | 65 | 3 | D |
| 1C104D100X72A25N40 | 10 | 10 | 9,4 | - / 0,2 | 72 | 40 | 25 | 3 | D |
| 1C104D100X81A32 | 10 | 10 | 0 | - / 0,2 | 81 | 0 | 32 | 3 | B |
| 1C104D100X81A32N40 | 10 | 10 | 9,4 | - / 0,2 | 81 | 40 | 32 | 3 | D |
| 1C104D120 | 12 | 12 | 0 | - / 0,2 | 73 | 0 | 26 | 3 | B |
| 1C104D120X110A26N60 | 12 | 12 | 11,4 | - / 0,2 | 110 | 60 | 26 | 3 | D |
| 1C104D120X110A40N60 | 12 | 12 | 11,4 | - / 0,2 | 110 | 60 | 40 | 3 | D |
| 1C104D120X150A40N90 | 12 | 12 | 11,4 | - / 0,2 | 150 | 90 | 40 | 3 | D |
| 1C104D120X150A65N90 | 12 | 12 | 11,4 | - / 0,2 | 150 | 90 | 65 | 3 | D |
| 1C104D120X73A26N40 | 12 | 12 | 11,4 | - / 0,2 | 73 | 40 | 26 | 3 | D |
| 1C104D120X83A32 | 12 | 12 | 0 | - / 0,2 | 83 | 0 | 32 | 3 | B |
| 1C104D120X83A32N50 | 12 | 12 | 11,4 | - / 0,2 | 83 | 50 | 32 | 3 | D |
| 1C104D140 | 14 | 14 | 0 | - / 0,25 | 83 | 0 | 32 | 3 | B |
| 1C104D140X100A32N55 | 14 | 14 | 13,4 | - / 0,25 | 100 | 55 | 32 | 3 | D |
| 1C104D140X100A40 | 14 | 14 | 0 | - / 0,25 | 100 | 0 | 40 | 3 | B |
| 1C104D140X100A40N55 | 14 | 14 | 13,4 | - / 0,25 | 100 | 55 | 40 | 3 | D |
| 1C104D140X150A40N90 | 14 | 14 | 13,4 | - / 0,25 | 150 | 90 | 40 | 3 | D |
| 1C104D140X150A65N90 | 14 | 14 | 13,4 | - / 0,25 | 150 | 90 | 65 | 3 | D |
| 1C104D140X150A90 | 14 | 14 | 0 | - / 0,25 | 150 | 0 | 90 | 3 | B |
| 1C104D140X83A32N45 | 14 | 14 | 13,4 | - / 0,25 | 83 | 45 | 32 | 3 | D |
| 1C104D160 | 16 | 16 | 0 | - / 0,3 | 92 | 0 | 32 | 3 | B |
| 1C104D160X108A25N60 | 16 | 16 | 15,4 | - / 0,3 | 108 | 60 | 25 | 3 | D |
| 1C104D160X108A40 | 16 | 16 | 0 | - / 0,3 | 108 | 0 | 40 | 3 | B |
| 1C104D160X108A40N60 | 16 | 16 | 15,4 | - / 0,3 | 108 | 60 | 40 | 3 | D |
| 1C104D160X150A40N90 | 16 | 16 | 15,4 | - / 0,3 | 150 | 90 | 40 | 3 | D |
| 1C104D160X150A65N90 | 16 | 16 | 15,4 | - / 0,3 | 150 | 90 | 65 | 3 | D |
| 1C104D160X150A90 | 16 | 16 | 0 | - / 0,3 | 150 | 0 | 90 | 3 | B |
| 1C104D160X215A125 | 16 | 16 | 0 | - / 0,3 | 215 | 0 | 125 | 3 | B |
| 1C104D160X215A95 | 16 | 16 | 0 | - / 0,3 | 215 | 0 | 95 | 3 | B |
| 1C104D160X215A95N125 | 16 | 16 | 15,4 | - / 0,3 | 215 | 125 | 95 | 3 | D |
| 1C104D160X92A32N50 | 16 | 16 | 15,4 | - / 0,3 | 92 | 50 | 32 | 3 | D |
| 1C104D180 | 18 | 18 | 0 | - / 0,35 | 100 | 0 | 36 | 3 | B |
| 1C104D180X100A36N55 | 18 | 18 | 17,2 | - / 0,35 | 100 | 55 | 36 | 3 | D |
| 1C104D180X110A48 | 18 | 18 | 0 | - / 0,35 | 110 | 0 | 48 | 3 | B |
| 1C104D180X110A48N70 | 18 | 18 | 17,2 | - / 0,35 | 110 | 70 | 48 | 3 | D |
| 1C104D180X150A40N90 | 18 | 18 | 17,2 | - / 0,35 | 150 | 90 | 40 | 3 | D |
| 1C104D180X150A65N90 | 18 | 18 | 17,2 | - / 0,35 | 150 | 90 | 65 | 3 | D |
| 1C104D180X150A90 | 18 | 18 | 0 | - / 0,35 | 150 | 0 | 90 | 3 | B |
| 1C104D200 | 20 | 20 | 0 | - / 0,35 | 104 | 0 | 40 | 3 | B |
| 1C104D200X104A40N60 | 20 | 20 | 19 | - / 0,35 | 104 | 60 | 40 | 3 | D |
| 1C104D200X126A25N75 | 20 | 20 | 19 | - / 0,35 | 126 | 75 | 25 | 3 | D |
| 1C104D200X126A55 | 20 | 20 | 0 | - / 0,35 | 126 | 0 | 55 | 3 | B |
| 1C104D200X126A55N75 | 20 | 20 | 19 | - / 0,35 | 126 | 75 | 55 | 3 | D |
| 1C104D200X150A40N90 | 20 | 20 | 19 | - / 0,35 | 150 | 90 | 40 | 3 | D |
| 1C104D200X150A65 | 20 | 20 | 0 | - / 0,35 | 150 | 0 | 65 | 3 | B |
| 1C104D200X150A65N90 | 20 | 20 | 19 | - / 0,35 | 150 | 90 | 65 | 3 | D |
| 1C104D200X150A90 | 20 | 20 | 0 | - / 0,35 | 150 | 0 | 90 | 3 | B |
| 1C104D200X215A125 | 20 | 20 | 0 | - / 0,35 | 215 | 0 | 125 | 3 | B |
| 1C104D200X215A95 | 20 | 20 | 0 | - / 0,35 | 215 | 0 | 95 | 3 | B |
| 1C104D200X215A95N125 | 20 | 20 | 19 | - / 0,35 | 215 | 125 | 95 | 3 | D |
| 1C104D250 | 25 | 25 | 0 | - / 0,4 | 125 | 0 | 45 | 3 | B |
| 1C104D250X125A45N75 | 25 | 25 | 24 | - / 0,4 | 125 | 75 | 45 | 3 | D |
| 1C104D250X150A60 | 25 | 25 | 0 | - / 0,4 | 150 | 0 | 60 | 3 | B |
| 1C104D250X150A60N90 | 25 | 25 | 24 | - / 0,4 | 150 | 90 | 60 | 3 | D |
